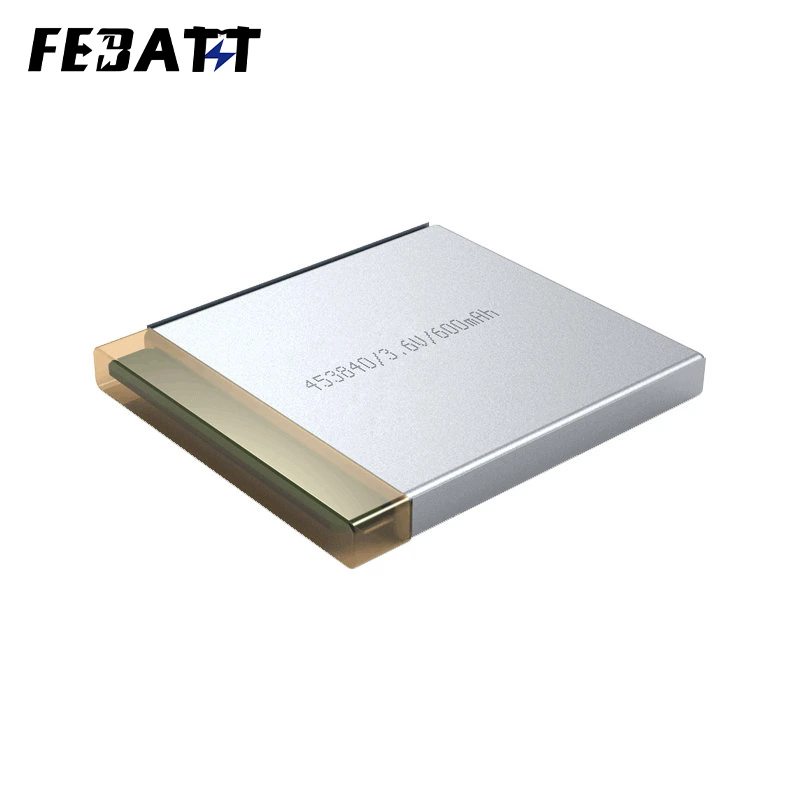

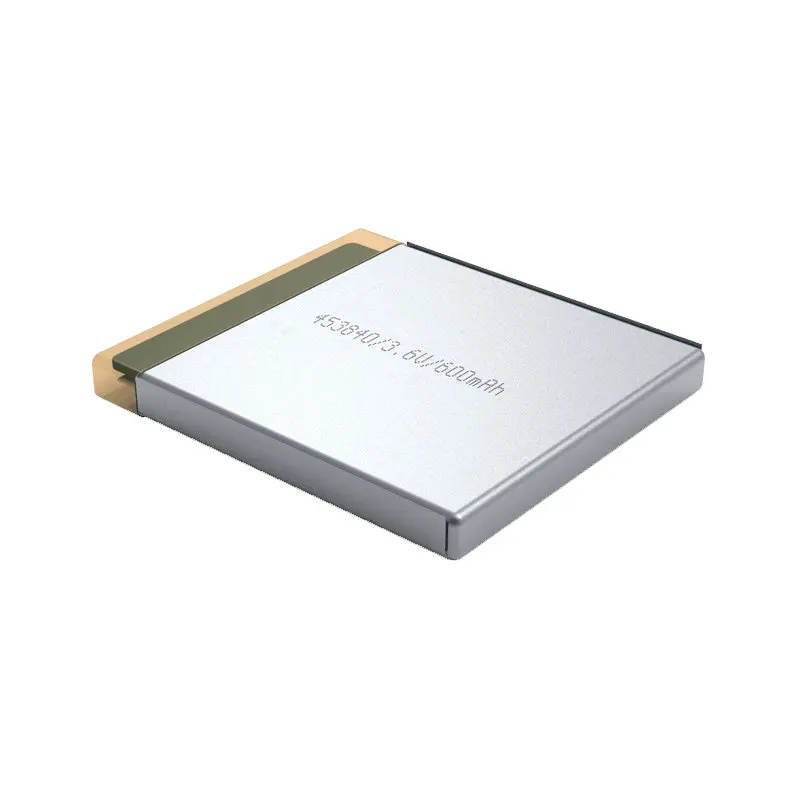

3.6V 600mAh Polymer Lithium Battery Pack: Explosion-Proof Power for Hazardous Environments
Product Introduction
The 3.6V 600mAh Polymer Lithium Battery Pack is a specialized energy solution engineered for explosive environments (e.g., oil stations, gas stations, mining sites). Built with industrial-grade polymer lithium technology and explosion-proof design (meeting GB3836/Exib iib T4 standards), this battery pack delivers stable 3.6V, 600mAh power while withstanding the high risks of flammable gases, dust, and harsh operating conditions. Whether powering sensors in oil refineries, communication devices in coal mines, or monitoring tools in gas stations, the 3.6V 600mAh Polymer Lithium Battery Pack combines safety, reliability, and long-term usability for critical hazardous-area applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Battery Chemistry | Polymer Lithium |
| Cell Model | 453840-1S1P-600mAh-3.6V |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 600mAh |
| Charging Voltage | 4.2V |
| Charging Current | ≤300mA |
| Discharging Current | 500mA (Instantaneous: 600mA) |
| Discharge Cut-off Voltage | 3V |
| Internal Resistance | ≤300mΩ |
| Weight | 25g |
| Dimensions | Length M3 × Width 38.5 × Thickness 4.55mm (max) |
| Operating Temperature | Charging: 0~45°C; Discharging: -20~55°C |
| Storage Temperature | -20~45°C |
| Casing Material | Industrial-grade (explosion-proof rated) |
| Safety Standards | GB3836, Exib iib T4 |
Core Features
1. Explosion-Proof Reliability for Hazardous Zones
The 3.6V 600mAh Polymer Lithium Battery Pack is certified to GB3836 and Exib iib T4 standards, ensuring it operates safely in environments with flammable gases (e.g., oil stations) or combustible dust (e.g., mining sites). Its design eliminates spark risks, making it indispensable for explosion-sensitive applications.
2. Low Self-Discharge for Long-Term Deployment
With minimal self-discharge, this battery pack retains charge efficiently during long-term storage or intermittent use. This is critical for backup devices in remote oil/gas facilities or mining equipment that activates sporadically.
3. Dual IC + PTC Protection for Maximum Safety
A dual IC protection scheme (plus recoverable PTC) prevents overcharging, over-discharging, short circuits, and overcurrent. In case of a short circuit, the PTC activates to stop sparks—an essential safeguard in explosive atmospheres.
4. Optimized for Harsh Environmental Performance
Engineered to discharge reliably in -20~55°C (with charging from 0~45°C), the battery pack adapts to temperature swings in outdoor oil fields, underground mines, or exposed gas station equipment.
Application Scenarios
The 3.6V 600mAh Polymer Lithium Battery Pack powers:
- Oil & Gas Stations: Sensors for fuel level monitoring, leak detection devices, or emergency communication radios in explosive atmospheres.
- Mining Operations: Portable gas detectors, underground communication transceivers, or safety monitoring sensors in coal/metal mines.
- Hazardous Industrial Zones: Intrinsically safe instruments (e.g., pressure gauges, flow meters) in chemical plants or refineries with flammable materials.
