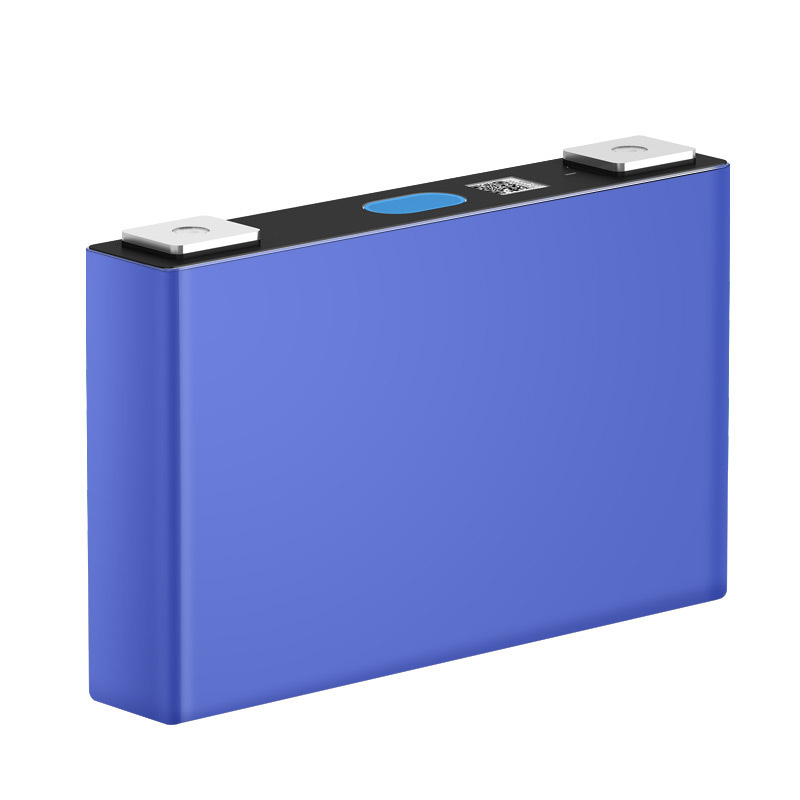

The Cell Battery LF32 is a high – performance 3.2V 32Ah lithium iron phosphate (LFP) prismatic cell engineered for reliability across diverse energy applications. As a 3.2V 32Ah LFP Cell LF32, it combines LFP’s inherent safety, long cycle life, and stable energy output with precise manufacturing for parameters like low internal resistance (≤1.5mΩ at 1KHz) and controlled self – discharge (≤3% per month). Whether powering solar/wind energy storage systems, electric vehicles (EVs) like scooters or golf carts, or industrial backup solutions, the LF32 Cell Battery delivers consistent 3.2V power and 32Ah capacity—backed by robust performance in extreme temperatures and extended cycle life.
| Specification Parameters |
| Weight | 730±50g |
| Model Name | LF32 |
| Nominal Capacity | 32Ah |
| Nominal Voltage | 3.2V |
| Charge Temperature | 0～60℃ |
| Discharge Temperature | -20～60℃ |
| Current of Charge/Discharge | 0.5C/0.5C |
| Cut-off Voltage of Charge/Discharge | 3.65V/2.5V |
| Constant Charge/Discharge | 1C/1C |
| ACR | ≤1.5mΩ |
| Product size (mm) | Length * width * height=148.3 ± 0.8mm * 26.8 ± 0.3mm * 94.3 ± 0.5mm |
- LFP Safety & Longevity: The Cell Battery LF32 uses lithium iron phosphate chemistry, offering thermal stability (no thermal runaway risk), inherent safety, and extended cycle life—critical for reliable long – term use in energy systems.
- Precise Electrochemical Performance: With internal resistance ≤1.5mΩ, monthly self – discharge ≤3%, and a 10%~90% SOC window, the 3.2V 32Ah LFP Cell LF32 ensures efficient energy transfer and prolonged cycle life.
- Wide Temperature Adaptability: Charges in 0℃~55℃ and discharges in -20℃~55℃, making the LF32 Cell Battery suitable for harsh climates (e.g., cold winters, hot summers).
- High – Current Capability: Supports 1C continuous and 2C pulse current, enabling use in high – demand applications like engine starting or EV acceleration with the Cell Battery LF32.
- Prismatic Design for Integration: The prismatic shape of the 3.2V 32Ah LFP Cell LF32 allows easy stacking, wiring, and integration into custom battery packs for solar storage, EVs, or industrial tools.
The Cell Battery LF32 excels in these use cases:
- Renewable Energy Storage: Stores solar/wind energy for residential or commercial use; the 3.2V 32Ah LFP Cell LF32 provides reliable backup during grid outages.
- Electric Vehicles (EVs) & Mobility: Powers electric bicycles, scooters, golf carts, or baby strollers, with the LF32 Cell Battery’s 32Ah capacity and high – current support enabling extended range and smooth acceleration.
- Industrial & Power Tools: Drives electric tools, engine start – stop systems, or backup power for small machinery, leveraging the Cell Battery LF32’s durability and high – current capability.
- Recreational Vehicles (RVs) & Vans: Supplies energy for RVs, caravans, or camper vans, with the 3.2V 32Ah LFP Cell LF32’s wide temperature range and low self – discharge ideal for off – grid travel.
