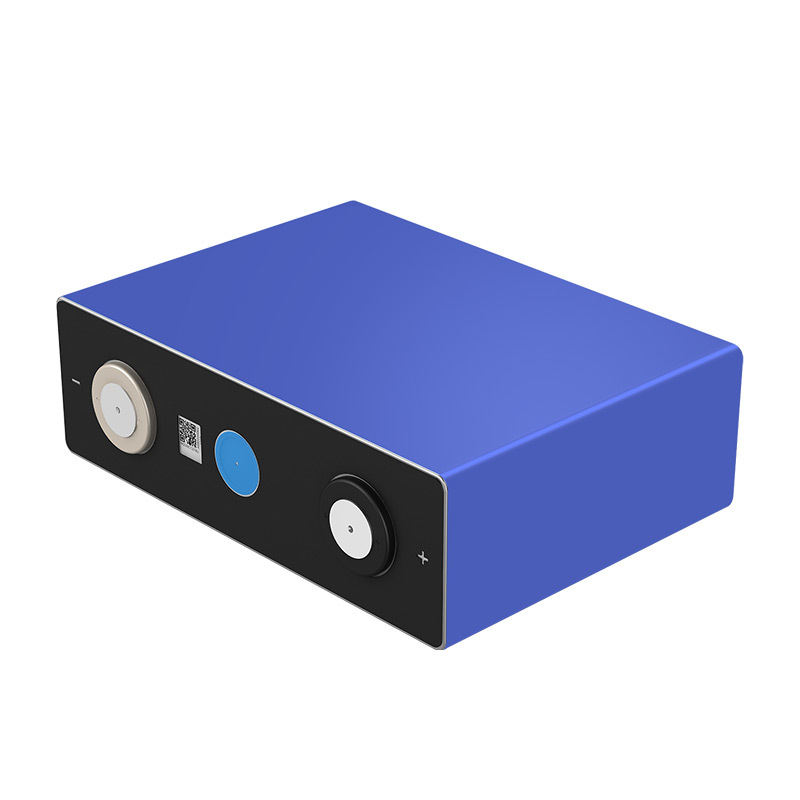

3.2V 100Ah LFP Cell LiFePO4 Battery LF100LA

EVE LF100LA LiFePO4 Cell: 102Ah 5000-Cycle Prismatic Battery for Variable Climates

Introduction

• Delivers 102Ah capacity, 3.2V stability, and an industry-leading 5000-cycle lifespan (80% retention).
• Operates in extreme temperatures: -20~65℃ discharge and 0~65℃ charge — recharging in freezing conditions where competitors stall.
• Features 0.2C symmetric charge/discharge (20.4A) and ≤0.5mΩ AC impedance — gentle charging extends battery life, while low loss boosts efficiency.
• Prismatic form factor (50.1×160.0×115.7mm) enables custom voltage/capacity scaling (series/parallel) for solar, RV, and industrial setups.

Why LF100LA LiFePO4 Cells Dominate

1. 5000-Cycle Longevity

• “5000 Cycles: The cell retains 80% capacity after 10 years of daily use — powering a 50kWh solar system for 10+ years, outlasting 1.5 sets of ordinary LFP cells.”

2. Ultra-Wide Temperature Tolerance

• “-20℃ Discharge: Delivers 85% capacity at -20℃ to power RV heaters in Arctic winters. 0℃ Charge: Recharges in freezing conditions where standard LFP cells (5℃ min) fail, eliminating downtime.”

3. 0.2C Gentle Charging & Low Impedance

• “0.2C Symmetric Current: Charges 102Ah in 5 hours (gentle on batteries), discharges 20.4A to run 6.5kW appliances — no stress on the cell.”
• “≤0.5mΩ AC Impedance: Reduces energy loss by 30% vs. ordinary LFP cells — ideal for high-efficiency solar storage systems.”

4. Prismatic Design & Custom Scalability

• “50.1×160.0×115.7mm Prismatic Form: Saves 20% space vs. cylindrical cells. Customize voltage (4S→16S) and capacity (2P→4P) to build 12.8V, 25.6V, or 51.2V systems.”

Application Scenarios

1. Solar & Energy Storage

• “Residential Solar: A 4S LF100LA pack (12.8V, 102Ah) stores 1.3kWh — powers a 3-bedroom home for 6 hours during outages.”
• “Commercial Solar Farms: 5000-cycle durability cuts O&M costs by 50% over 10 years — 102Ah cells buffer peak demand efficiently.”

2. RV, Off-Grid & Marine

• “Arctic RVs: EVE LF100LA LiFePO4 cells keep fridges and heaters operational at -20℃ — no winter shutdowns.”
• “Off-Grid Cabins: A 2P pack (3.2V, 204Ah) stores 653Wh — powers lights and appliances for 24+ hours, recharging in 0℃ via solar.”

3. Industrial & AGV Fleets

• “AGV Fleets: 0.2C charging extends battery life, 5000 cycles mean 8+ years of use — powered by LF100LA prismatic cells.”
• “Industrial UPS: Low impedance ensures stable backup power, even during 65℃ summer heat.”

Customization Services

• ✅ Voltage Scaling: 4S (12.8V) to 16S (51.2V) for solar inverters and industrial UPS systems.
• ✅ Capacity Expansion: 2P (204Ah) to 4P (408Ah) for high-energy applications like marine vessels.
• ✅ BMS Integration: CAN/RS485 smart charge control — prevents overcharging during 0.2C charging.
• ✅ Enclosure Customization: IP65 waterproof, ruggedized casings for marine/industrial use (as featured in the LF100LA-8S model)
