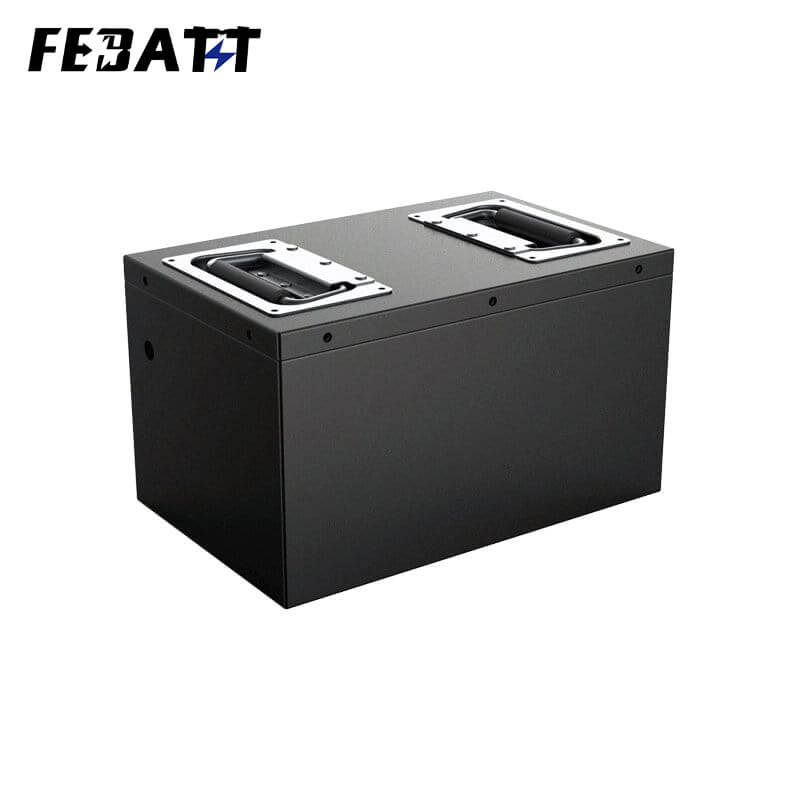

Engineered for inspection robots, the 25.2V 60Ah Inspection Robot Li-ion Battery delivers 60Ah capacity, 25.2V stable output, and a robust sheet metal casing. With 12A continuous discharge, 20A instantaneous current, and a wide temperature range (-20~60℃ discharge), this Industrial Inspection Robot Battery fuels inspection robots, power monitoring robots, and security robots—ensuring uninterrupted operation in harsh environments.
Cell Model: 18650-3400mAh-3.6V
Battery Configuration: 18650-7S18P-60Ah-25.2V
Nominal Voltage: 25.2V
Nominal Capacity: 60Ah
Charging Voltage: 28.7V
Charging Current: ≤20A
Discharging Current: 12A
Instantaneous Discharging Current: 20A
Discharging Cut-off Voltage: 17.5V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 7000g
Product Size: 240×180×160mm (Max)
Charging Temperature: 0～45°C
Discharging Temperature: -20～60°C
Storage Temperature: -20～ 35°C
Battery Casing: Sheet metal casing
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, etc.
Application Field: Inspection robots, power monitoring robots, security robots, and other robotic applications
The 25.2V 60Ah Inspection Robot Li-ion Battery ensures:
- “60Ah Capacity: Runs a security inspection robot for 10 + hours—no interruptions in factory patrols.”
- “25.2V Stable Output: Powers power monitoring robots 24/7—consistent data for industrial compliance.”
With sheet metal casing and smart protection:
- “Sheet Metal Casing: Withstands drops, vibrations in construction zones—no damage in field use.”
- “-20℃ Discharge: Operates in winter pipeline inspections—maintains power for robots in freezing temps.”
Advanced performance features:
- “20A Instantaneous Current: Powers robot drilling bursts—ideal for tough industrial inspections.”
- “Temperature Protection: Shields against overheating in hot factories—safe for continuous use.”
The 25.2V 60Ah Inspection Robot Li-ion Battery powers:
- “Factory Patrol Robots: 25.2V 60Ah output supports 8 + hours of operation—uninterrupted safety checks.”
- “Outdoor Security Robots: -20℃ discharge runs surveillance bots in winter—no slowdowns in cold.”
For heavy – duty industrial systems:
- “Power Monitoring Robots: 12A continuous discharge powers sensor stations—24/7 grid compliance.”
- “Automated Inspection Bots: 20A instantaneous current handles metal – scanning bursts—efficient quality checks.”
