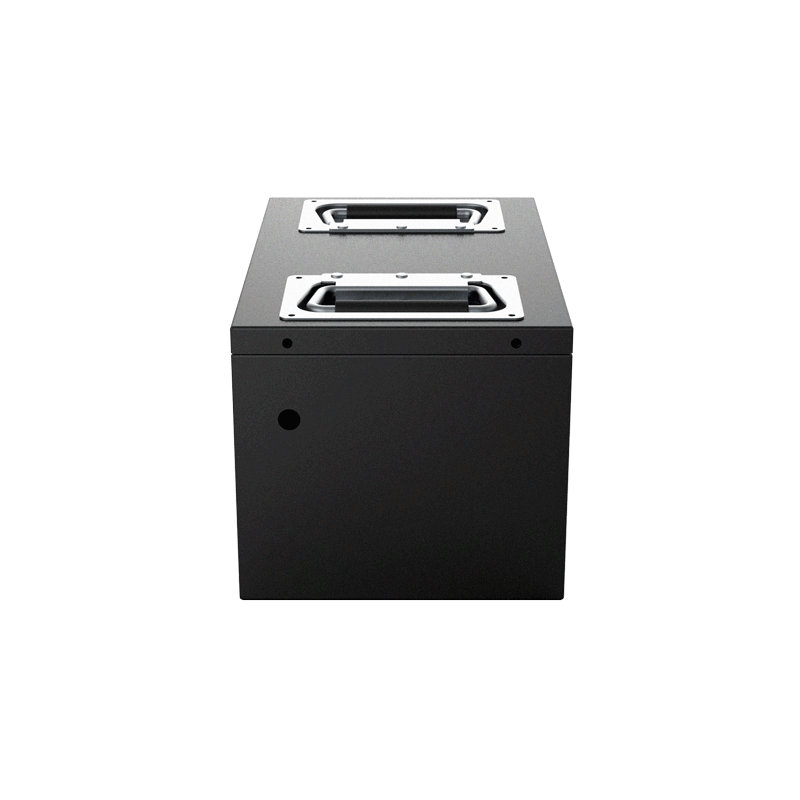

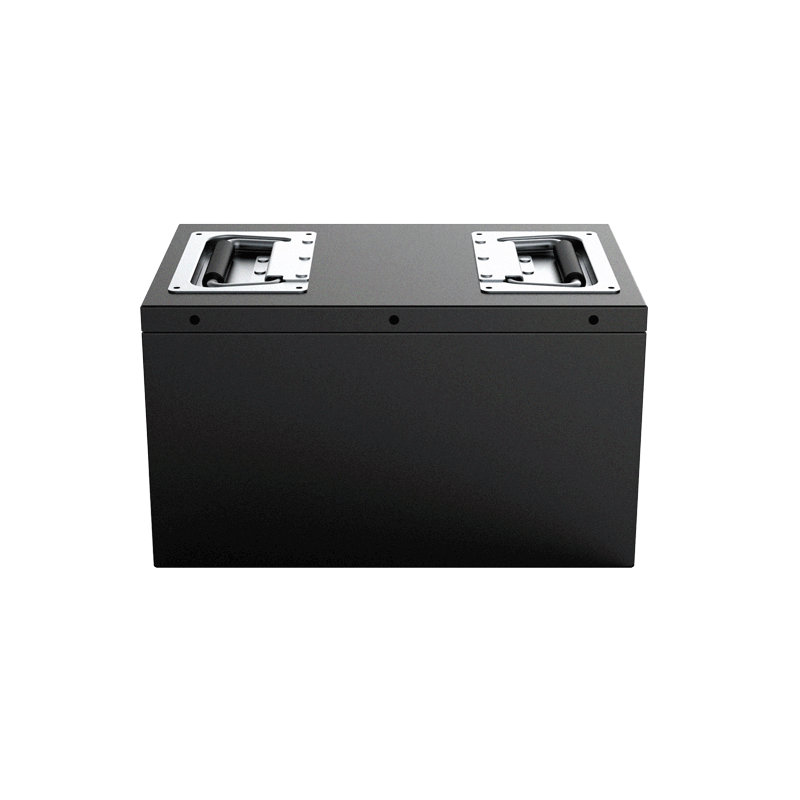

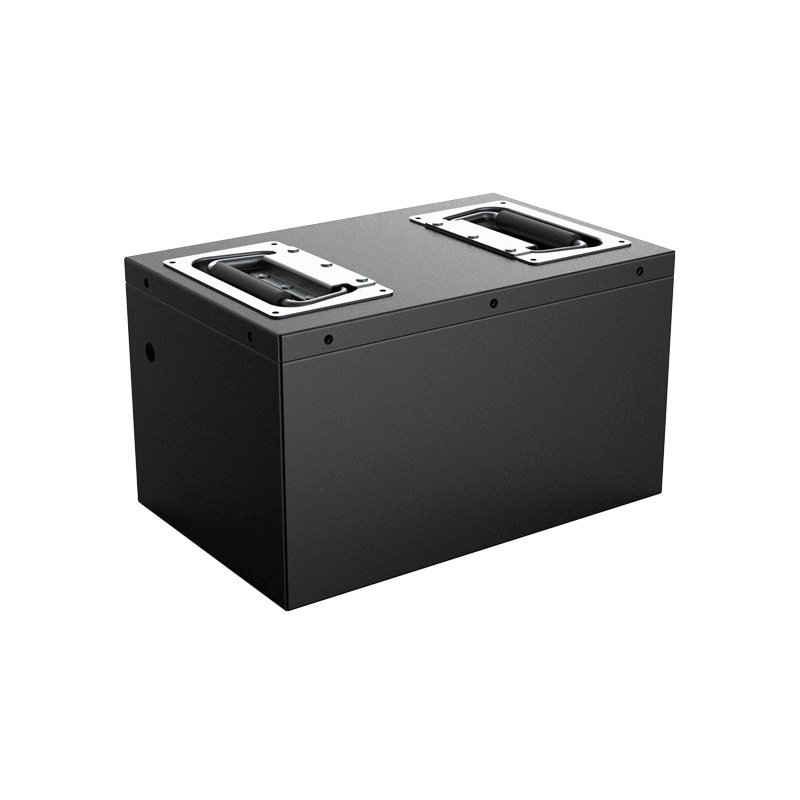

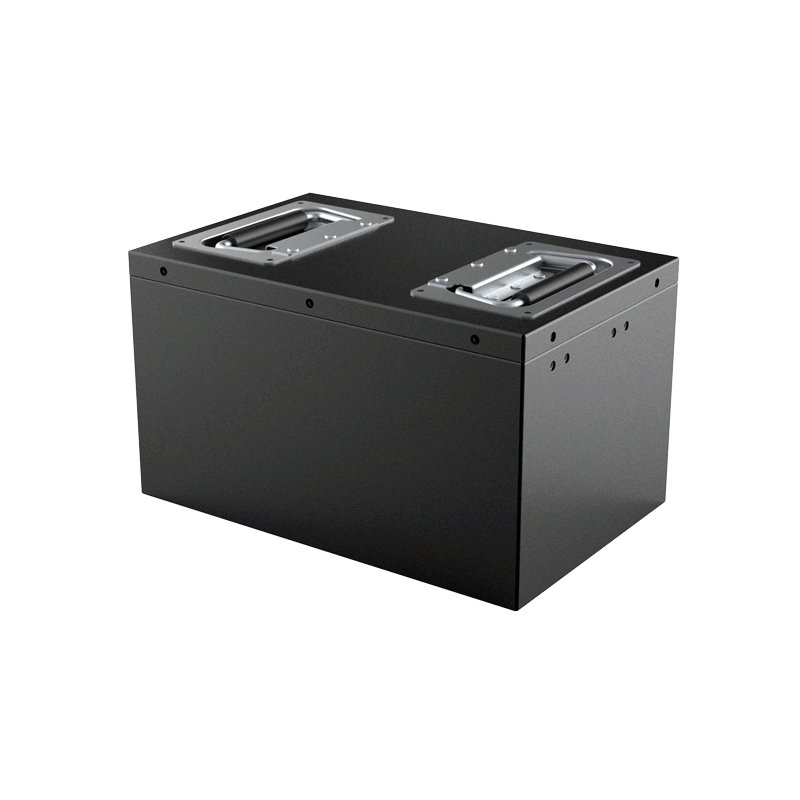

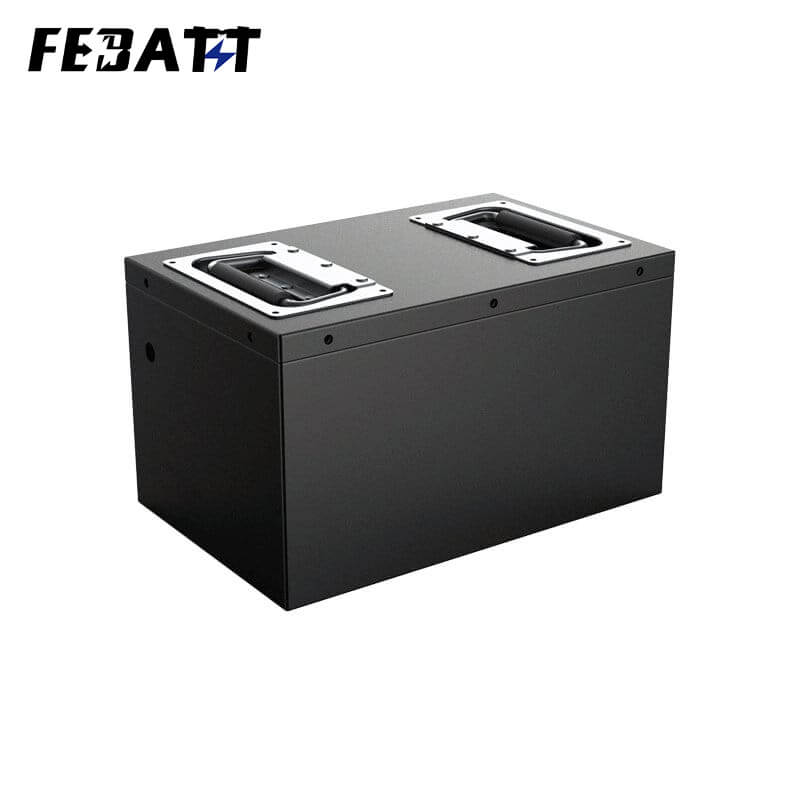

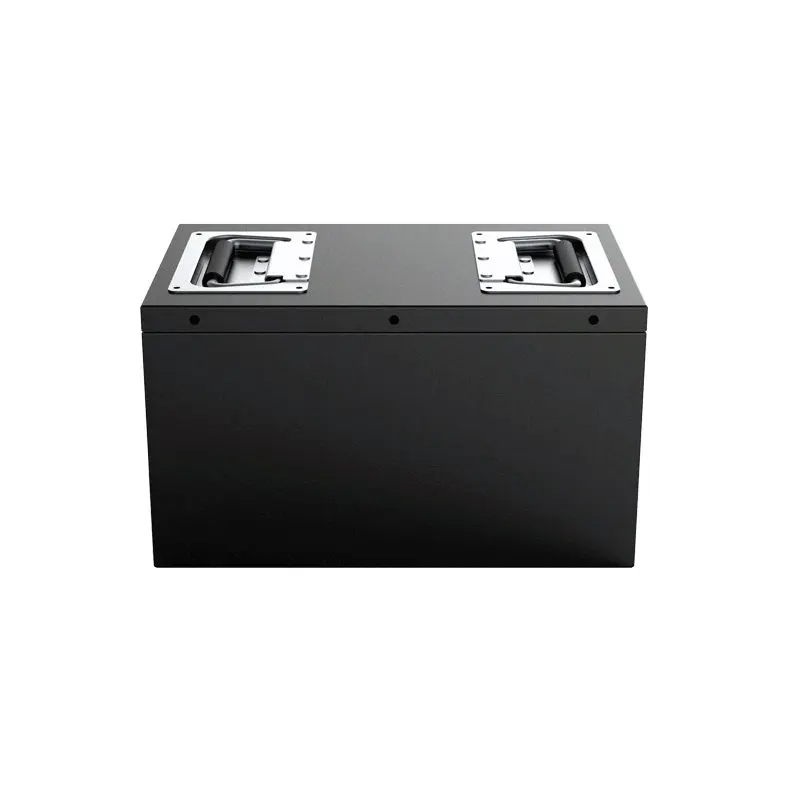

25.2V 60Ah 18650 Lithium-ion Battery Pack for Inspection Robots
Product Details:
Cell Model: 18650-3400mAh-3.6V
Battery Configuration: 18650-7S18P-60Ah-25.2V
Nominal Voltage: 25.2V
Nominal Capacity: 60Ah
Charging Voltage: 28.7V
Charging Current: ≤20A
Discharging Current: 12A
Instantaneous Discharging Current: 20A
Discharging Cut-off Voltage: 17.5V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 7000g
Product Size: 240×180×160mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～60℃
Storage Temperature: -20～35℃
Battery Casing: Sheet metal casing
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, and more
Application Field: Inspection robots, Power monitoring robots, Security robots, and other robotic applications
Product Features:
25.2V 60Ah 18650 Lithium-ion Battery Pack for Inspection Robots
Sheet metal casing: Increases the reliability and robustness of the battery, making it easy to install, transport, and carry.
Wire Output: Uses high-temperature resistant wires for reliable conductivity and high-temperature resistance.
Data communication management: Utilizes TI-SMBus software management chip for accurate data transmission and precise temperature control, minimizing safety hazards.
Battery pack safety and excellent discharging performance, with long cycle life.
High cycle life of the battery pack, conforming to the values of low carbon, energy-saving, and environmental protection.
| Parameter | 25.2V 60Ah 18650 Lithium-ion Battery Pack for Inspection Robots |
|---|---|
| Cell Model | 18650 – 3400mAh – 3.6V |
| Battery Configuration | 18650 – 7S18P – 60Ah – 25.2V |
| Nominal Voltage | 25.2V |
| Nominal Capacity | 60Ah |
| Charging Voltage | 28.7V |
| Charging Current | ≤20A |
| Discharging Current | 12A |
| Instantaneous Discharging Current | 20A |
| Discharging Cut – off Voltage | 17.5V |
| Finished Product Internal Resistance | ≤200mΩ |
| Battery Weight | 7000g |
| Product Size | 240×180×160mm (Max) |
| Charging Temperature | 0～45°C |
| Discharging Temperature | – 20～60°C |
| Storage Temperature | – 20～35°C |
| Battery Casing | Sheet metal casing |
| Lithium Battery Protection | Short Circuit Protection, Overcharge Protection, Over – discharge Protection, Overcurrent Protection, and more |
| Application Field | Inspection robots, Power monitoring robots, Security robots, and other robotic applications |
