25.2V 5.2Ah Energy Storage Lithium Battery: Reliable Power for Measurement & Control Equipment
Product Introduction

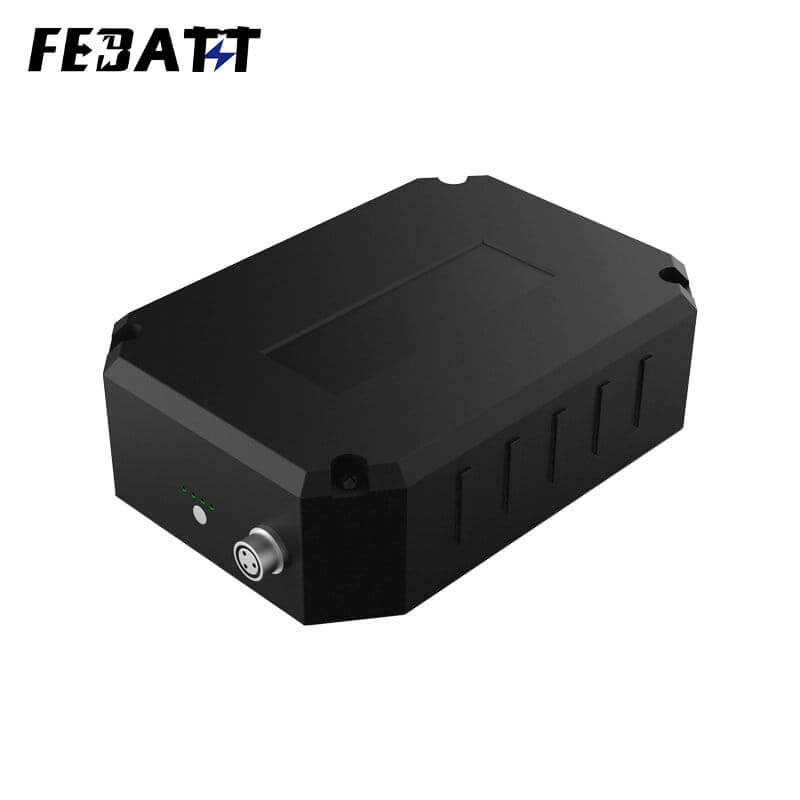

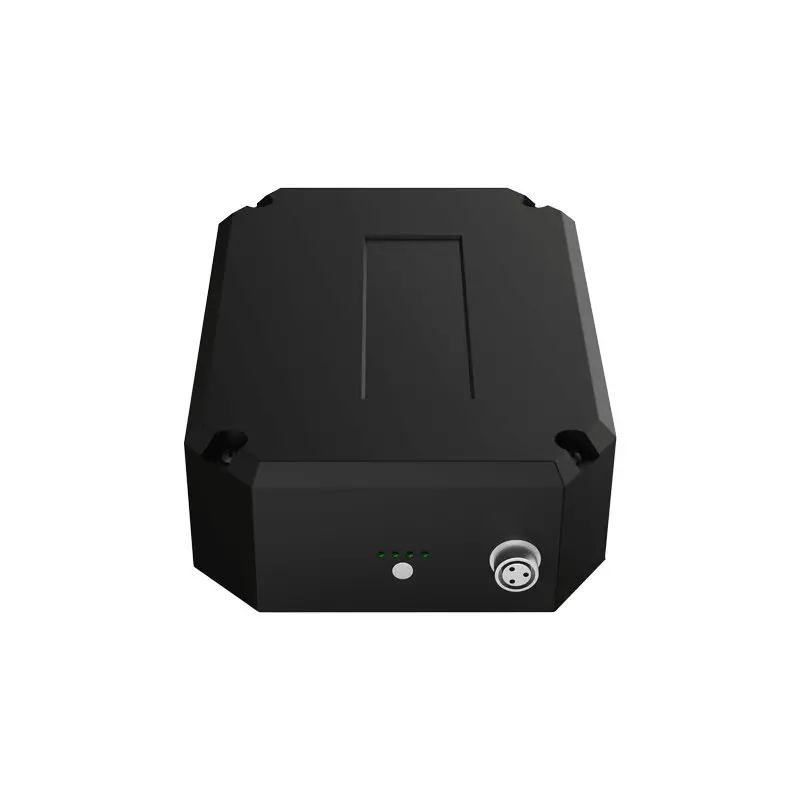

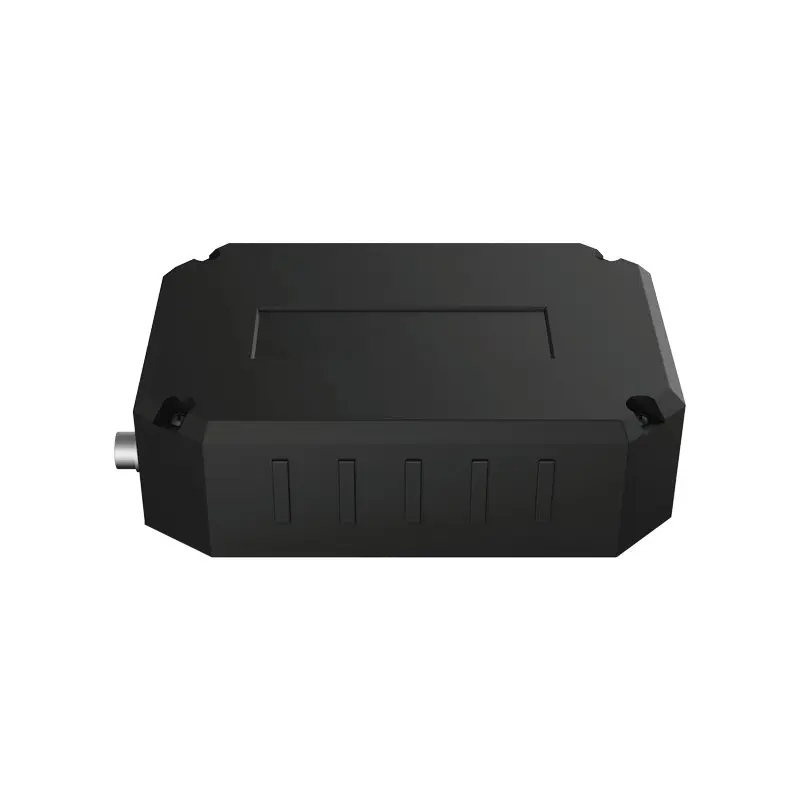

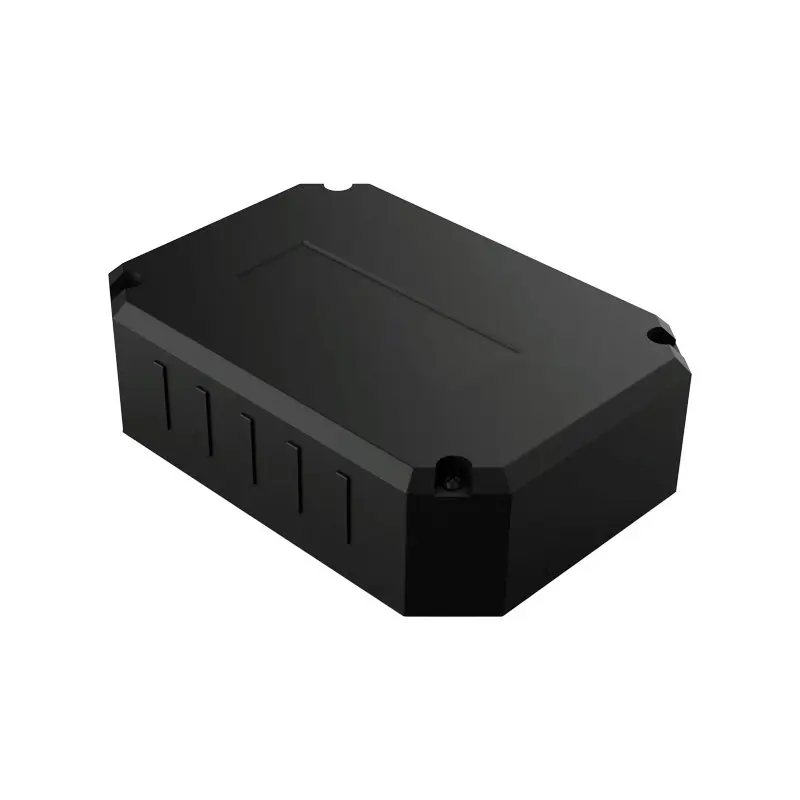

The 25.2V 5.2Ah Energy Storage Lithium Battery is a specialized lithium-ion solution engineered for measurement and control equipment, as well as instrumentation systems. Constructed with 18650 cell architecture, an engineering plastic casing, and precision protection technology, this battery supplies a stable 25.2V output and 5.2Ah capacity while operating reliably in extreme temperatures (-20℃ to 60℃). Whether powering industrial control modules in factories, laboratory measurement instruments, or field-mounted instrumentation devices, the 25.2V 5.2Ah Energy Storage Lithium Battery ensures consistent, durable energy delivery for precision-driven applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Cell Model | 18650 / 3.6V/2600mAh |
| Battery Configuration | 18650-7S2P / 25.2V/5.2Ah |
| Nominal Voltage | 25.2V |
| Nominal Capacity | 5.2Ah (5200mAh) |
| Charging Voltage | 29.4V |
| Charging Current | ≤2A |
| Discharging Current | 4A (Instantaneous: 10A) |
| Discharge Cut-off Voltage | 16.8V |
| Internal Resistance | ≤300mΩ |
| Weight | 0.8Kg |
| Dimensions (L×W×H) | 170×125×50mm (Max) |
| Operating Temperature | Charging: 0~45℃; Discharging: -20~60℃ |
| Storage Temperature | -20~35℃ |
| Casing Material | Engineering Plastic |
| Safety Protections | Short-circuit, overcharge, over-discharge, overcurrent protection |
Core Features
1. Precision Power for Measurement & Control Tasks
The 25.2V 5.2Ah Energy Storage Lithium Battery is tailored to the voltage and capacity demands of measurement, control, and instrumentation equipment. Its stable 25.2V output and low internal resistance (≤300mΩ) prevent voltage fluctuations, ensuring accurate data collection and control signals for devices like industrial PLCs, laboratory analyzers, or field sensors—critical for applications where measurement precision is non-negotiable.
2. Wide Temperature Resilience for Diverse Environments
Engineered to discharge in -20℃ to 60℃, this battery thrives in extreme settings: from cold industrial workshops (-20℃) where traditional batteries falter, to high-temperature factory floors (60℃) or outdoor instrumentation deployments exposed to harsh weather. Charging compatibility across 0~45℃ also enables flexible recharging in labs, control rooms, or mobile field stations.
3. Enhanced Safety via Precision Protection Architecture
Equipped with precision IC chips for battery protection management, the battery integrates multi-layer safeguards against short circuits, overcharging, over-discharging, and overcurrent. This not only extends the battery’s cycle life but also eliminates potential safety hazards for critical measurement and control systems—where equipment downtime or malfunctions could disrupt operations.
4. User-Centric Design for Accessibility & Reliability
- Specialized Plug Design: The output terminal utilizes a customized plug to boost conductivity reliability, ensuring stable power transfer even in vibration-prone industrial environments.
- LED Battery Level Display: Built-in LED indicators visually communicate charging status and progress, empowering operators of measurement devices to monitor battery usage at a glance—streamlining workflow efficiency.
Application Scenarios
The 25.2V 5.2Ah Energy Storage Lithium Battery powers:
- Industrial Measurement & Control Systems: PLCs (Programmable Logic Controllers), DCS (Distributed Control Systems), or process control modules in manufacturing plants, where stable power enables precise production line management.
- Laboratory Instrumentation: Analytical balances, spectroscopy devices, or calibration tools—where voltage stability ensures accurate experimental data and repeatable results.
- Field-mounted Monitoring Instruments: Environmental sensors, pipeline pressure monitors, or remote data loggers in outdoor industrial sites—relying on the battery’s wide temperature tolerance and durable design for long-term, unattended operation.
