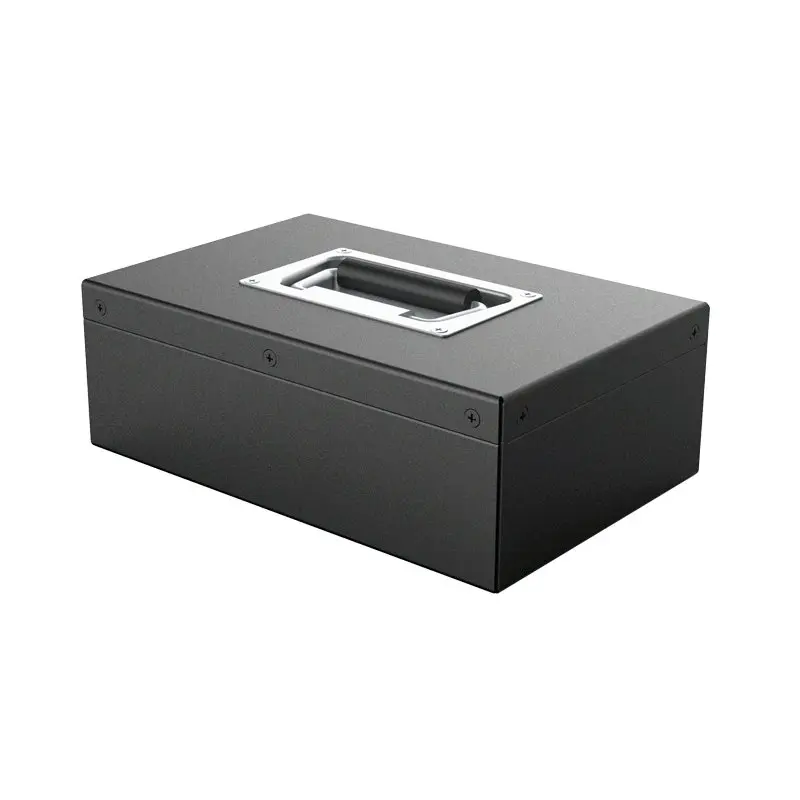

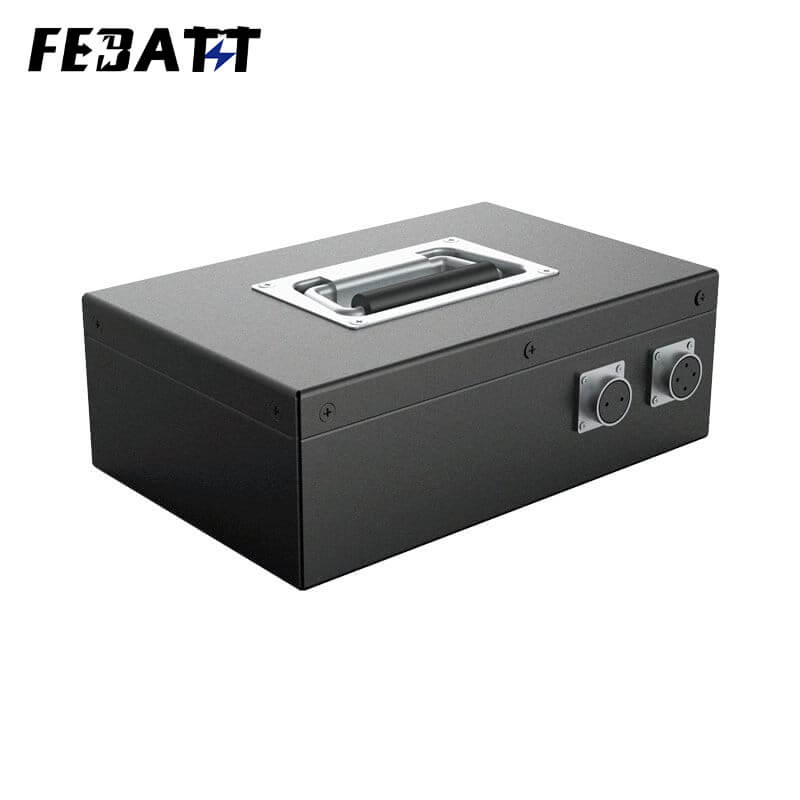

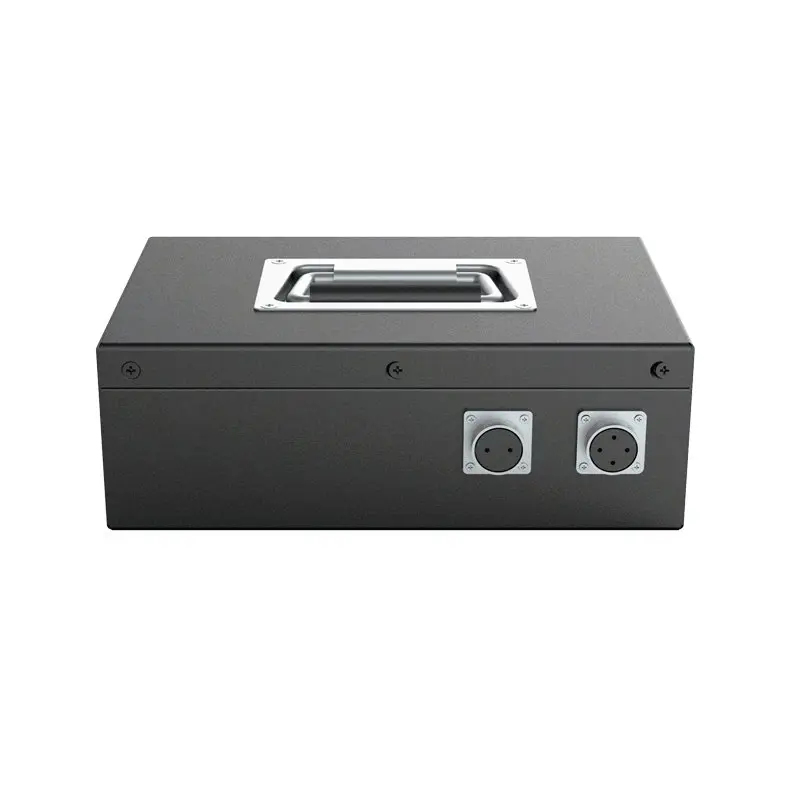

Engineered for mobile robots and AGVs, the 25.2V 40Ah Lithium Battery for Mobile Robots (cell model 18650) delivers 40Ah capacity, 25.2V stable output, and a cold – rolled sheet metal casing. With 10A continuous discharge, 35A instantaneous current, and a wide temperature range (-20~50℃ discharge), this Mobile Robot Lithium Battery fuels industrial mobile robots, automated guided vehicles, and logistics transport bots—ensuring uninterrupted operation in manufacturing, warehousing, and field environments.
Product Details:
Cell Model: 18650/3.6V/3.35Ah
Battery Configuration: 18650/7S12P/25.2V/40Ah
Nominal Voltage: 25.2V
Nominal Capacity: 40Ah
Charging Voltage: 29.4V
Charging Current: ≤10A
Discharging Current: 10A
Instantaneous Discharging Current: 35A
Discharging Cut-off Voltage: 19.6V
Finished Product Internal Resistance: ≤200mΩ
Battery Weight: 6kg
Product Size: 260×170×90mm (Max)
Charging Temperature: 0～45℃
Discharging Temperature: -20～50℃
Storage Temperature: -20～40℃
Temperature Protection: 65℃±5℃
Battery Casing: Cold-rolled sheet metal
Lithium Battery Protection: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Temperature Protection
Application Field: Robots, AGV
The 25.2V 40Ah Lithium Battery for Mobile Robots ensures:
- “40Ah Capacity: Runs an industrial mobile robot for 10 + hours—no interruptions in warehouse logistics.”
- “25.2V Stable Output: Powers AGVs in manufacturing plants 24/7—consistent material transport.”
With cold – rolled sheet metal casing and smart protection:
- “Cold – Rolled Sheet Metal Casing: Withstands impacts, vibrations in factory zones—no damage in field use.”
- “-20℃ Discharge: Operates in winter outdoor robot tasks—maintains power in freezing temps.”
Advanced performance features:
- “35A Instantaneous Current: Powers robot acceleration, lifting bursts—ideal for heavy – duty transport.”
- “Temperature Protection: Shields against overheating in hot factories—safe for continuous use.”
The 25.2V 40Ah Lithium Battery for Mobile Robots powers:
- “Warehouse AGVs: 25.2V 40Ah output supports 8 + hours of material transport—uninterrupted logistics ops.”
- “Outdoor Inspection Robots: -20℃ discharge runs survey bots in winter—no slowdowns in cold fields.”
For heavy – duty industrial systems:
- “Manufacturing Transport Robots: 10A continuous discharge powers assembly – line part delivery—24/7 production.”
- “Logistics Sorting Bots: 35A instantaneous current handles package – handling bursts—efficient warehouse sorting.”
