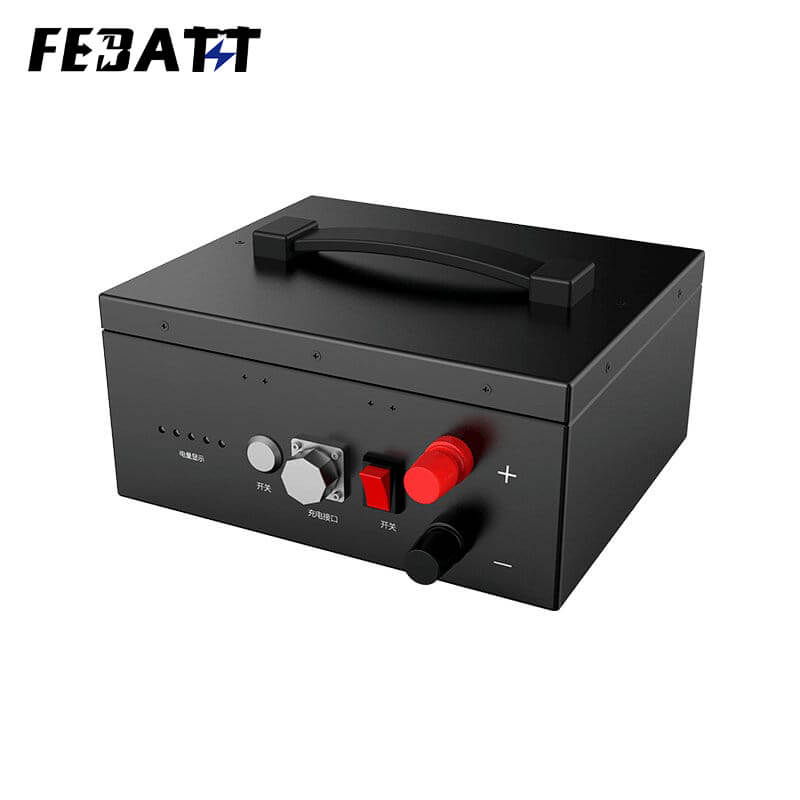

25.2V 20Ah Special Vehicle Power Battery for Special Vehicles
Product Introduction
Introducing the 25.2V 20Ah Special Vehicle Power Battery—a high-performance lithium-ion (Li-ion) solution engineered exclusively for special vehicles and industrial equipment. Built with 18650 cells for consistent power delivery, this 25.2V 20Ah power battery combines a 20Ah capacity, robust discharge capabilities (up to 20A instantaneous), and durable waterproof/dustproof design. Whether powering utility carts, mobile machinery, or specialized industrial vehicles, this special vehicle 25.2V 20Ah battery ensures reliable energy for demanding workflows—backed by advanced safety protections and smart monitoring options.
Technical Specifications
Parameter | Details |
---|---|
Battery Type | Lithium-ion (Li-ion) |
Cell Model | 18650 (2600mAh/3.6V) |
Configuration | 18650-7S8P / 25.2V 20Ah |
Nominal Voltage | 25.2V |
Nominal Capacity | 20Ah |
Charging Voltage | 29.4V |
Max Charging Current | ≤10A |
Continuous Discharge Current | 10A |
Instantaneous Discharge Current | 20A |
Discharge Cut-off Voltage | 21V |
Internal Resistance | ≤100mΩ |
Weight | 3Kg |
Dimensions (L×W×H) | 190×170×90mm (Max) |
Charging Temperature | 0~45℃ |
Discharging Temperature | -20~55℃ |
Storage Temperature | -20~45℃ |
Protection Features | Short Circuit, Overcharge, Over-discharge, Overcurrent, Cell Balancing |
Communication Options | Optional RS232 / RS485 for Data Monitoring |
Casing Design | Portable Handle, Waterproof & Dustproof (IP-rated) |
Core Features
1. Tailored for Special Vehicle Power Needs
This 25.2V 20Ah Special Vehicle Power Battery is optimized for industrial mobility:
- 20Ah Capacity & 20A Peak Discharge: Delivers sustained power for special vehicles (e.g., utility carts, inspection vehicles) and mobile equipment (e.g., industrial tools, emergency response gear) during prolonged operations.
- Portable Handle & Compact Size: Easy to transport or install in space-constrained special vehicle compartments.
2. Robust 18650 Cell Performance
Leveraging proven 18650 Li-ion cells:
- Consistent Energy Delivery: 18650 cells ensure stable voltage output for special vehicle electronics (sensors, motors, lighting) even under high-load conditions.
- Long Cycle Life: Withstands repeated charge-discharge cycles, reducing replacement frequency for fleet or industrial users.
3. Waterproof & Dustproof Durability
Engineered for harsh environments:
- IP-Rated Casing: Shields against water, dust, and debris—ideal for special vehicles operating in outdoor, industrial, or rugged settings (e.g., construction sites, warehouses).
4. Advanced Safety & Monitoring
Designed to protect equipment and users:
- Multi-Layer Protection: Guards against short circuits, overcharging, over-discharging, and overcurrent to prevent battery damage or safety hazards in special vehicle applications.
- Optional RS232/RS485 Communication: Enables real-time monitoring of battery status (SOC, temperature, health) for predictive maintenance in fleet or industrial workflows.
5. Wide Temperature Resilience
Performs in extreme climates:
- -20~55℃ Discharge Range: Powers special vehicles in freezing cold (e.g., winter utility work) or high-heat industrial zones without performance loss.
Application Scenarios
The 25.2V 20Ah Special Vehicle Power Battery is ideal for:
- Special Utility Vehicles: Powering maintenance carts, inspection vehicles, or mobile workstations in factories, airports, or municipal operations.
- Industrial Mobile Equipment: Supplying energy for portable tools, robotic systems, or emergency response gear requiring reliable off-grid power.
- Custom Machinery: Energizing specialized vehicles (e.g., automated guided carts, material transporters) in warehouse or manufacturing automation.
