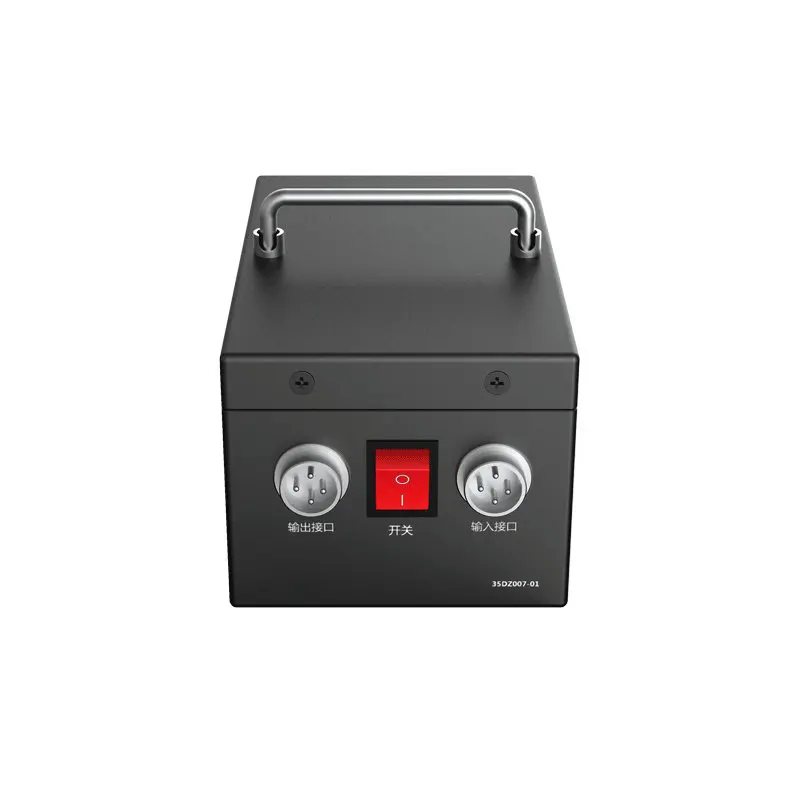

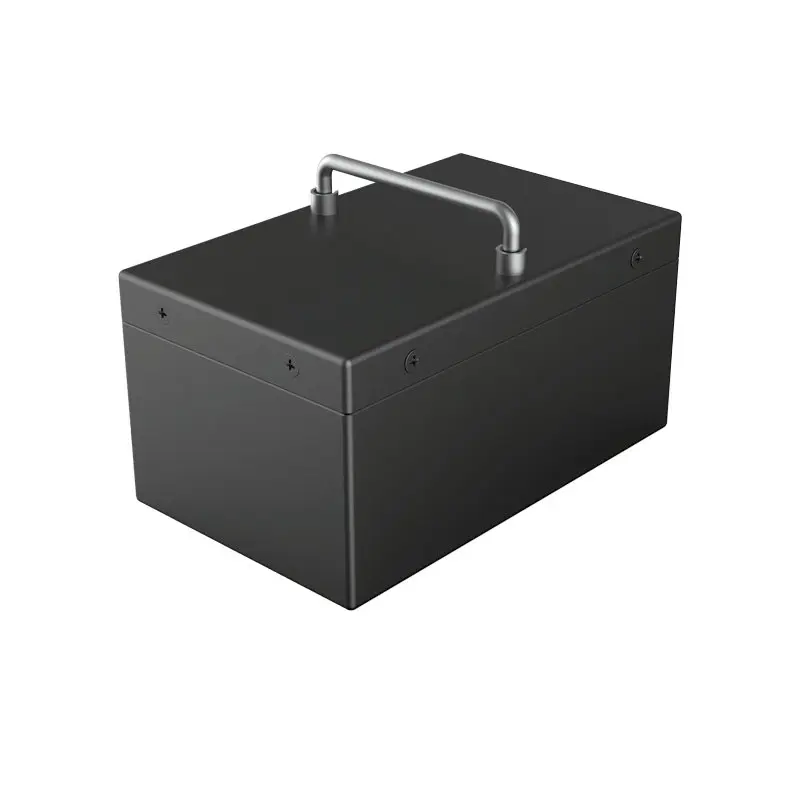

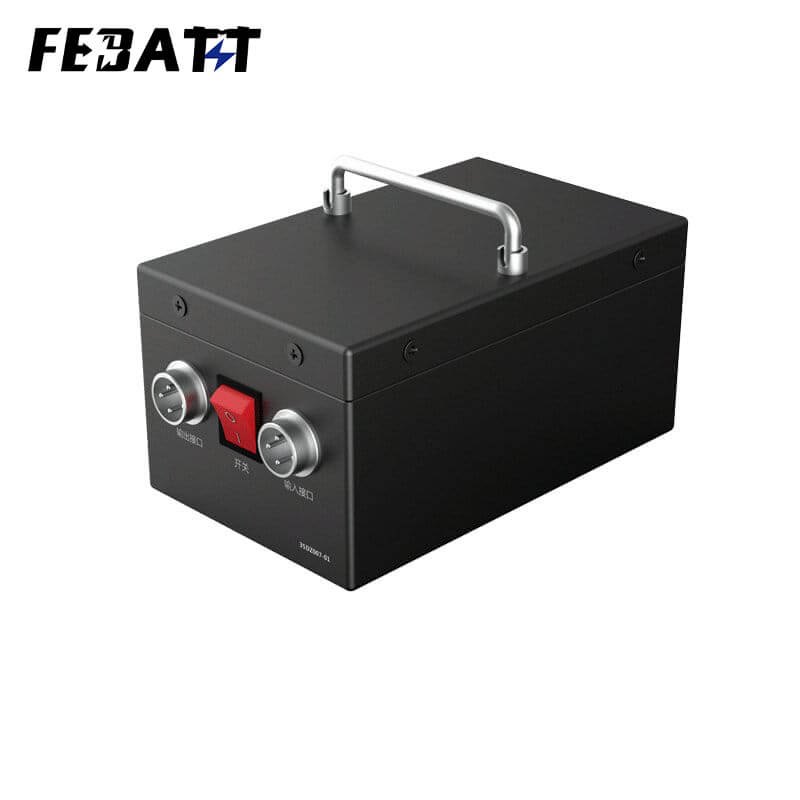

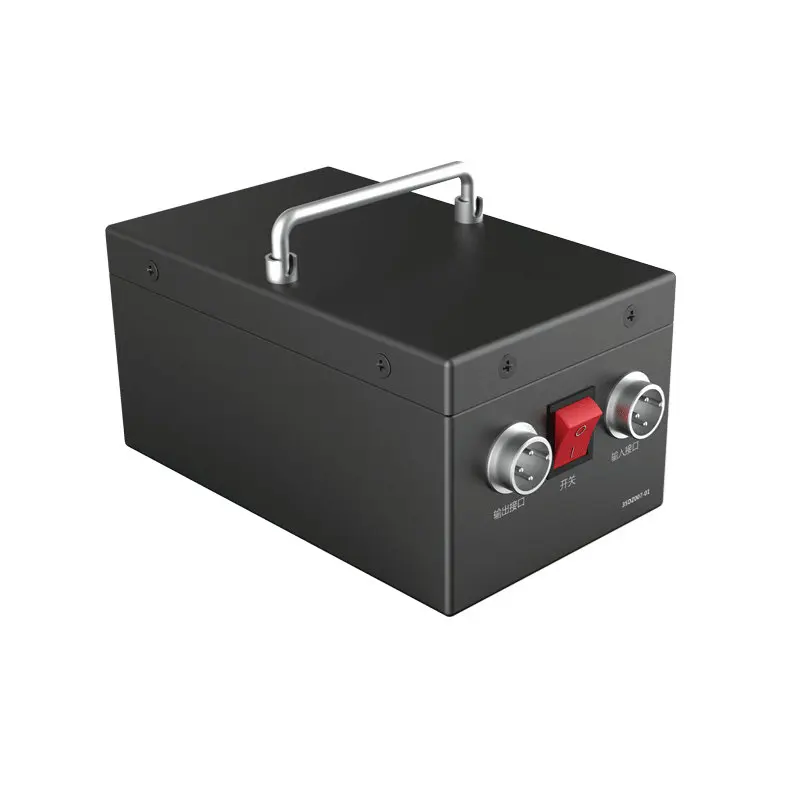

25.9V 10Ah 18650 Low-Temperature Discharge Lithium Battery
Product Specifications
| Specification | Detail |
|---|---|
| Cell Model | 18650 3.6V/2.2Ah (Low Temperature) |
| Battery Configuration | 7S5P/25.9V/10Ah |
| Nominal Voltage | 25.9V |
| Nominal Capacity | 10Ah |
| Charging Voltage | 29.4V |
| Charging Current | ≤5A |
| Discharging Current | ≤10A |
| Instantaneous Discharge Current | 35A |
| Discharge Cutoff Voltage | 17.5V |
| Internal Resistance | ≤180mΩ |
| Battery Weight | 3000g |
| Product Dimensions | 190×120×90mm (Max) |
| Charging Temperature | 0～45°C |
| Discharging Temperature | – 40～55°C |
| Storage Temperature | – 40～45°C |
| Temperature Protection | 65°C±5°C |
| Battery Case | Metal Sheet |
| Battery Protection | Short circuit protection, overcharge protection, over – discharge protection, overcurrent protection, temperature protection, etc. |
| Application Fields | Power battery for field exploration vehicles |
| Low Self Discharge | Minimal self – discharge rate |
| Low – Temperature Discharge | Capable of discharging at temperatures as low as – 40°C |
| Low Voltage Switch | Equipped with a low voltage switch |
| Temperature Protection | Built – in temperature protection |
| Safety and Longevity | Designed for safety and long cycle life |
| Eco – Friendly | High cycle life supporting low – carbon, energy – saving, and environmentally friendly values |
Product Advantages
- Exceptional Low – Temperature Discharge: The 25.9V 10Ah 18650 Low-Temperature Discharge Lithium Battery can discharge at temperatures as low as – 40°C. This means you don’t have to worry about power failure when using field exploration vehicles in extremely cold areas.
- Stable Voltage and Capacity: With a nominal voltage of 25.9V and a nominal capacity of 10Ah, this 25.9V 10Ah 18650 low – temperature discharge lithium battery provides consistent power output. It can keep your field exploration vehicle running for a long time, ensuring the smooth progress of exploration tasks.
- Comprehensive Protection: Equipped with short circuit protection, overcharge protection, over – discharge protection, overcurrent protection, and temperature protection, the 25.9V 10Ah 18650 low – temperature discharge lithium battery ensures safety during use. You can have peace of mind knowing that the battery is well – protected.
- Long Cycle Life and Eco – friendliness: Designed for safety and long cycle life, this 25.9V 10Ah 18650 Low-Temperature Discharge Lithium Battery supports low – carbon, energy – saving, and environmentally friendly values. Its high cycle life reduces the frequency of battery replacement, saving costs and being friendly to the environment.
- Low Self – Discharge: The 25.9V 10Ah 18650 Low-Temperature Discharge Lithium Battery has a minimal self – discharge rate. Even if stored for a long time, it can maintain a good power state, ready for use at any time.
