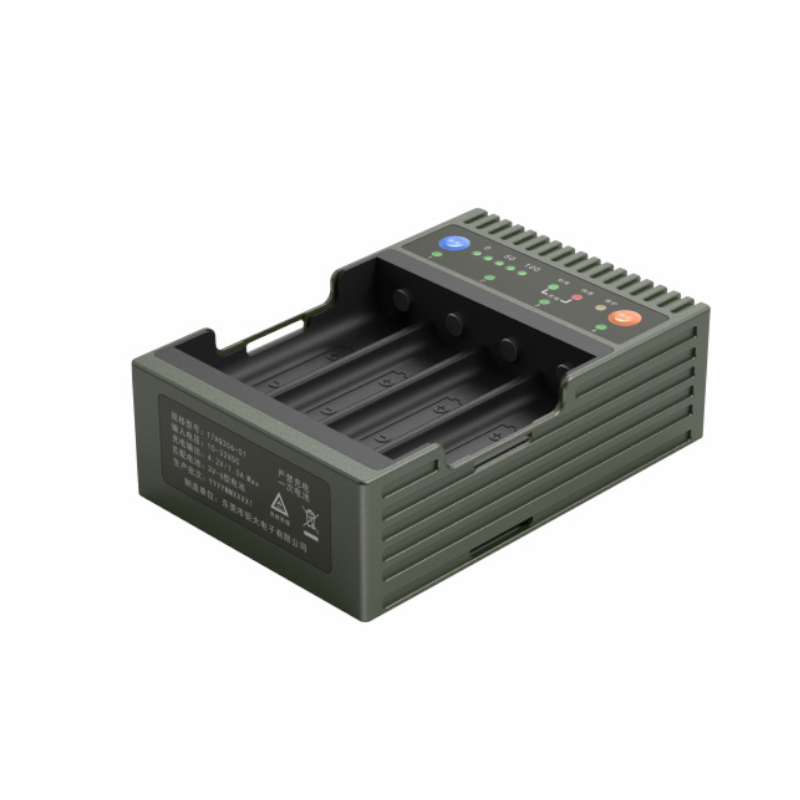

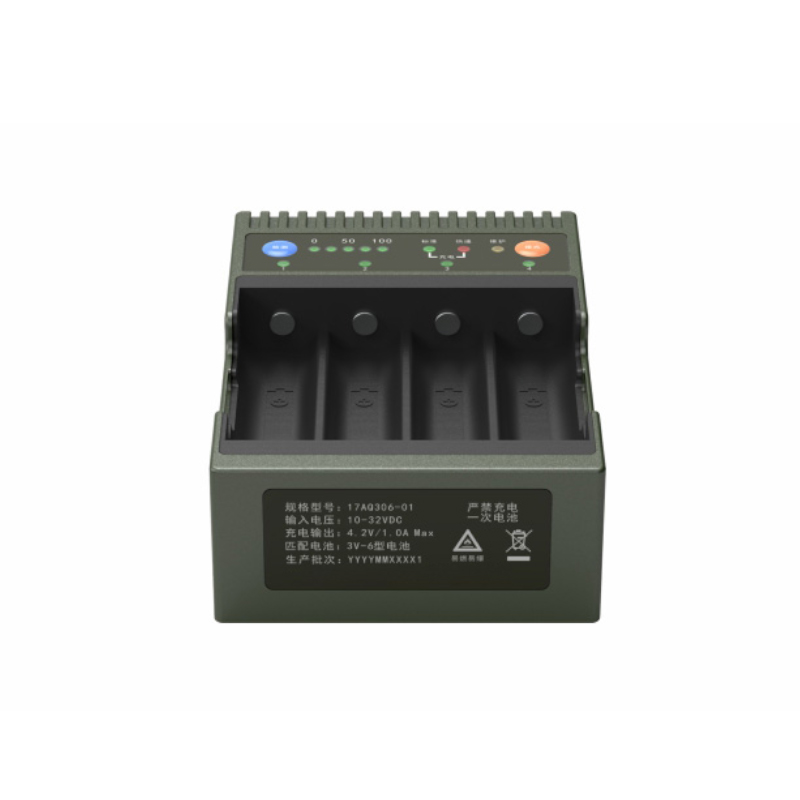

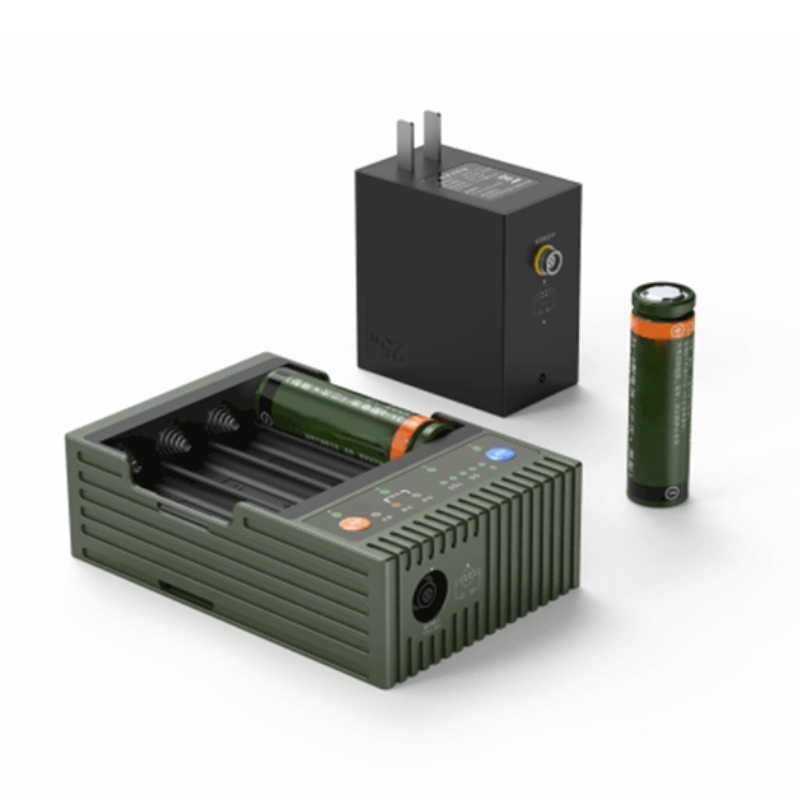

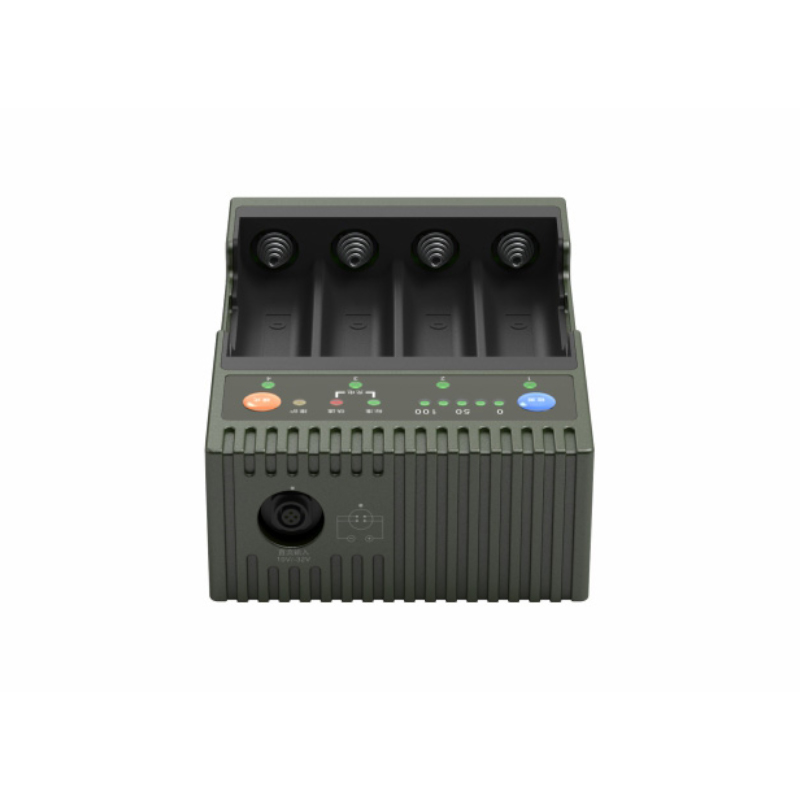

18650 4-Channel Standard Charger: Efficient Charging for 18650 Lithium Batteries
Product Introduction
The 18650 4-Channel Standard Charger is a specialized charging solution engineered for single 18650 ternary lithium batteries. Designed to deliver 4.2V precision charging with dual – current modes (0.5A standard, 1.0A fast), this charger integrates a microprocessor for multi – stage charging (pre – charge, constant current, constant voltage, stop charge) and advanced battery maintenance. Built with a rugged aluminum alloy shell (brown – green GY05) for natural heat dissipation, the 4-Channel 18650 Standard Charger meets military – grade standards (GJB151B – 2013/GJB150A – 2009) and operates reliably in extreme temperatures (-40℃~+55℃).
Technical Specifications
| Parameter | 18650 4-Channel Standard Charger |
|---|---|
| Channels | 4 – channel |
| Output Voltage | 4.2V Max |
| Output Current | 0.5A (standard charging), 1.0A (fast charging) |
| Input Voltage Range | 10 – 32VDC (powered by 24V/25W dedicated adapter) |
| Operating Temperature | -40℃ ~ +55℃ |
| Status Display | LED Indicator |
| Input Interface | Taixing Linghang, JX – DC – 4KZ socket |
| Design Standard | GJB151B – 2013 / GJB150A – 2009 |

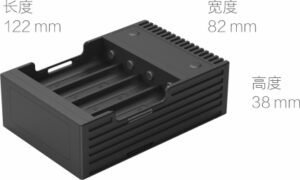

| Charger Dimensions | 122×82×38mm (±0.5mm tolerance) |

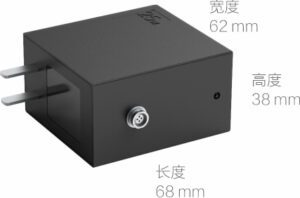

| Adapter Dimensions | 68×62×38mm (±2mm tolerance) |
| Product Weight | ≤380g (host, no accessories) |
| Shell Material | Aluminum Alloy (brown – green GY05) |
Functions & Features
- Multi – Stage Charging Modes: The 18650 4-Channel Standard Charger includes pre – charging, constant current (CC) charging, constant voltage (CV) charging, and stop charging—optimizing battery life and performance.
- Battery Maintenance & Detection: Built – in microprocessor enables battery performance testing, charge/discharge maintenance, and solar photovoltaic module docking (for off – grid charging).
- Rugged Aluminum Alloy Shell: The brown – green GY05 aluminum alloy housing ensures natural heat dissipation and durability for field or industrial use.
- Comprehensive Protection: Features input overcurrent/overvoltage protection and output overvoltage/undervoltage/reverse connection/short – circuit protection—safeguarding batteries and equipment.
- Extreme Temperature Operation: Works flawlessly in -40℃~+55℃, making it suitable for harsh environments (military, outdoor, industrial).
Application Field
The 18650 4-Channel Standard Charger is ideal for:
- Single 18650 Ternary Lithium Batteries: Charges and maintains 18650 cells used in flashlights, portable electronics, or industrial tools.
- Military & Aerospace: Complies with GJB standards for use in defense – grade equipment or aerospace applications.
- Outdoor & Field Operations: Powers devices in remote locations with solar PV docking or DC input (10 – 32VDC).
