12V 300AH Truck Parking Starting Battery: LiFePO4 Power for Heavy-Duty Vehicles
Product Introduction
The 12V 300AH Truck Parking Starting Battery is a high-performance lithium iron phosphate (LiFePO4) solution engineered exclusively for heavy-duty trucks—seamlessly supporting parking power needs (e.g., cab AC, onboard electronics) and reliable engine starting. With a nominal capacity of 300AH and 3600Wh of stored energy, this battery leverages advanced LiFePO4 chemistry to ensure ≥6000 charge-discharge cycles (retaining ≥80% capacity) while operating in extreme temperatures (-20℃ to 60℃). Built with IP65 waterproof/dustproof protection and 600A cranking current (CCA), the 12V 300AH Truck Parking Starting Battery merges long-lasting durability, robust power delivery, and all-weather resilience—perfect for truckers and fleet operations across diverse environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 12V300AH |
| Nominal Capacity | 300AH |
| Nominal Energy | 3600Wh |
| Charging Voltage | 12.8V |
| Discharging Voltage | 14.6V |

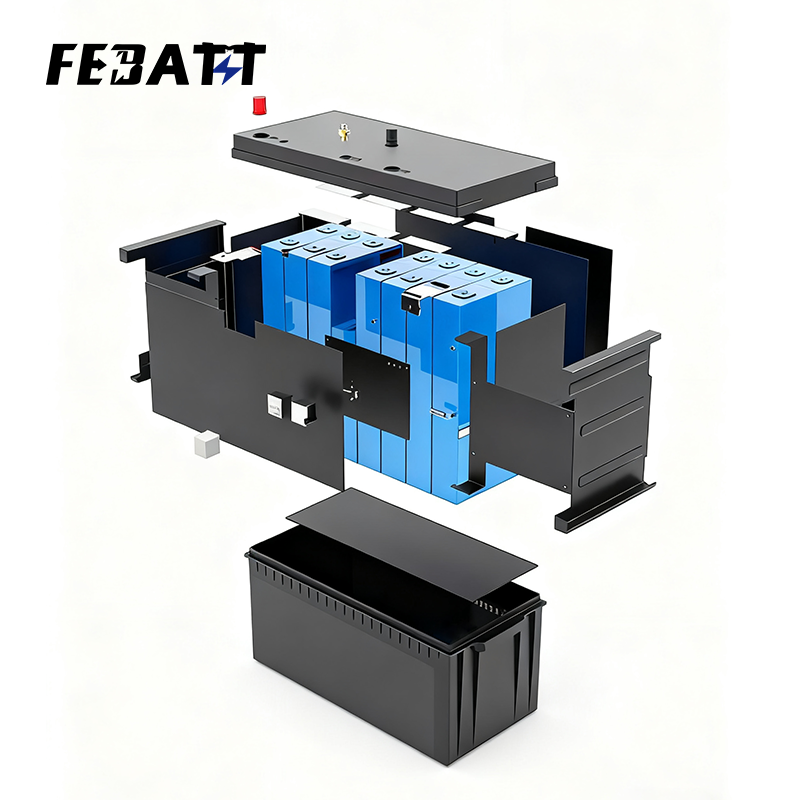

| Cell Type | 3.2V 300AH LiFePO4 Cells |
| Cell Configuration (S×P) | 4S1P (4 cells in series, 1 in parallel) |
| Max. Charging Current | 100A |
| Max. Continuous Discharging Current | 200A |
| Cranking Current (CCA) | 600A |
| Max. Discharge Power | 2000W |
| Operating Temperature | Charging: 0~50℃; Discharging: -20~60℃ |
| Cycle Life | ≥6000 cycles (≥80% capacity retention) |
| IP Rating | IP65 (Waterproof & Dustproof) |

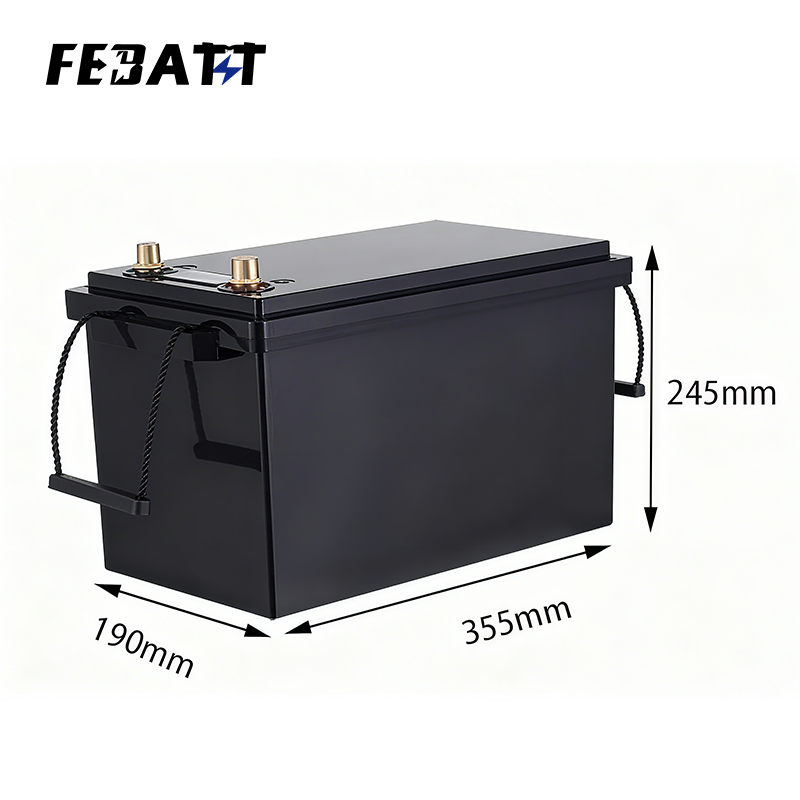

| Dimensions (L×W×H) | 355×190×245mm |
| Weight | 34KG |
| Certifications | CE/MSDS/UN38.3 |
Core Features
1. Dual Functionality: Parking Power + Engine Starting
The 12V 300AH Truck Parking Starting Battery is designed to excel at two critical tasks:
- Parking Auxiliary Power: Powers cab air conditioning, interior lights, infotainment systems, and other electronics without idling the engine—saving fuel, reducing emissions, and enhancing driver comfort during rest stops.
- Reliable Engine Cranking: Delivers a robust 600A cranking current (CCA) to start heavy-duty truck engines consistently, even in extreme cold (-20℃) or heat (60℃)—eliminating “no-start” frustrations.
2. LiFePO4 Longevity for Fleet Durability
Leveraging lithium iron phosphate (LiFePO4) technology:
- ≥6000-Cycle Lifespan: Lasts through years of daily use for long-haul truck fleets, construction vehicles, or logistics operations—drastically reducing battery replacement frequency and total cost of ownership.
- Stable Performance Over Time: Maintains ≥80% capacity after thousands of cycles, ensuring consistent parking power and starting reliability throughout the battery’s lifespan.
3. IP65 Protection for Harsh Environments
With an IP65 waterproof and dustproof rating:
- Withstands rain, road spray, dust, and debris in construction sites, off-road hauling routes, or coastal transport operations—protecting the battery from environmental damage and ensuring longevity in tough conditions.
4. Extreme Temperature Resilience
Engineered to perform in all-weather trucking scenarios:
- -20℃ Low-Temperature Starting: Cranks engines in freezing winter conditions (e.g., northern regions, mountainous terrains) without loss of power or performance.
- 60℃ High-Temperature Operation: Powers parking electronics in scorching summer heat (e.g., desert deliveries) while resisting thermal degradation.
5. High Power & Efficient Charging
Optimized for heavy-duty truck power demands:
- 200A Continuous Discharge: Supports simultaneous operation of parking AC, lights, and accessories without voltage sag—ensuring stable power for onboard systems.
- 100A Fast Charging: Recharges quickly during driving or downtime, so the battery is always ready for next-use parking and starting needs.
Application Scenarios
The 12V 300AH Truck Parking Starting Battery is ideal for:
- Long-Haul Freight Trucks: Providing parking power for cab comfort (AC, fans) during cross-country trips and reliable engine starting after rest stops.
- Construction & Mining Trucks: Supporting auxiliary electronics (work lights, radios) in dusty, rugged job sites while ensuring consistent engine startup.
- Refrigerated Trucks: Powering refrigeration units during parking (to keep cargo cool) while retaining enough capacity for reliable engine startup.
